| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001:2015 |
| Model Number: | JR403-GP |
| Minimum Order Quantity: | 1pcs |
| Price: | Reconsideration |
| Packaging Details: | Standard carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS/Day |
| Product Name: | SIP+4G Network Phone | Type: | GSM |
|---|---|---|---|
| SIM Card: | Single/Dual Optional | WiFi: | 802.11b/G/N,Support WiFi Hotspot |
| Antenna: | TNC Antenna Or Integrated Antenna | SMS/Bluetooth: | Support |
| Highlight: | GSM 4G SIP phone,VOIP Terminal 4G SIP phone,4GB VoLTE SIP Desktop Phone |
||

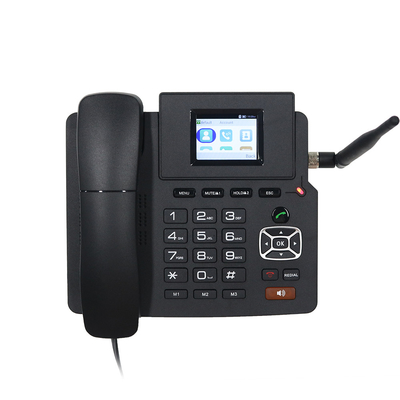

WiFi/SIP Network Desktop Phone, 4G/VoIP Dual-Mode Wireless Phone
JR403-GP fixed telephone is a multi-functional communication terminal, which is a VOIP terminal product with high practicality and manageability for voice communication on IP networks. It can be used in extensions and network IP telephone operating networks within the enterprise and has Internet access User. It can connect to the operator's 4G network, and the communication cost is extremely low with the support of the operator. It can also be used as a communication tool with high cost performance, high stability, and most in line with traditional usage habits in various private networks.
Technical specifications
WiFi/SIP Network Desktop Phone, 4G/VoIP Dual-Mode Wireless Phone
| Item | Specificatiom |
| LCD size | 2.4 |
| LCD Color | Color |
| Platform | Spreadtrum 9820e |
| Network | 4G All-Netcom(adjusted for different countries and regions) |
Frequency |
FDD-LTE: B1/B3/ B7/B20/B28A |
| TDD-LTE: B38/B39/B40/B41 | |
| WCDMA: B1/B2/B5/B8 | |
| GSM: B2/B3/B5/B8 | |
| WIFI | Support IEE802.11b/g/n |
| Bluttooth | Ble 4.0 |
| Battery | 1000mAh |
| Antenna | External TNC or Built-in Antenna |
| Power Supply | Micro usb 5V input |
Main Function |
WIFI Hotspot, VoLTE Voice, MP3 FM Radio, SMS, Make/receive call, |
| Hands free,speed dial,call forwarding,weather forecast etc | |
| Antenna interface | Integrated/TNC detachable antenna (optional) |
| Standby | Standby:120hrs talking time<5hrs |
| Power supply | DC 5V/1A |
| Battery | 3.7V/1000mAh |
| Accessory | Wire coil,handset,power adapter,back-up battery,user manual |
| SIP/VOIP | |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Transmission protocol | UDP/TCP/TLS |
| DTMF | In-band, Out-of-band(RFC 2833) and SIP INFO |
| Audio coding |
G.722/G.729/AMR/AMRWB/GSM/PCMA/PCMU/SPEEX/ILBC/DTMF/ISACWB/OPUS |
| Audio function | AEC/VAD/CNG/AGC/ANS |
| SRTP | NONE/FORCE/PREFER |
| 3GPP | TS 24.605 |
| Call transfer support | support |
| STUN | support |
| SIP line | 3 lines |
