| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001:2015 |
| Model Number: | JR401-GP |
| Minimum Order Quantity: | 1pcs |
| Price: | Reconsideration |
| Packaging Details: | Standard carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 PCS/Day |
| Product Name: | SIP+4G Network Phone | Type: | GSM |
|---|---|---|---|
| SIM Card: | Single/Dual Optional | WiFi: | 802.11b/G/N,Support WiFi Hotspot |
| Antenna: | TNC Antenna Or Integrated Antenna | SMS/Bluetooth: | Support |
| Highlight: | 2.4'' LCD SIP Desktop Phone,Fixed Landline SIP Desktop Phone,1000mAh Battery 4g sip phone |
||

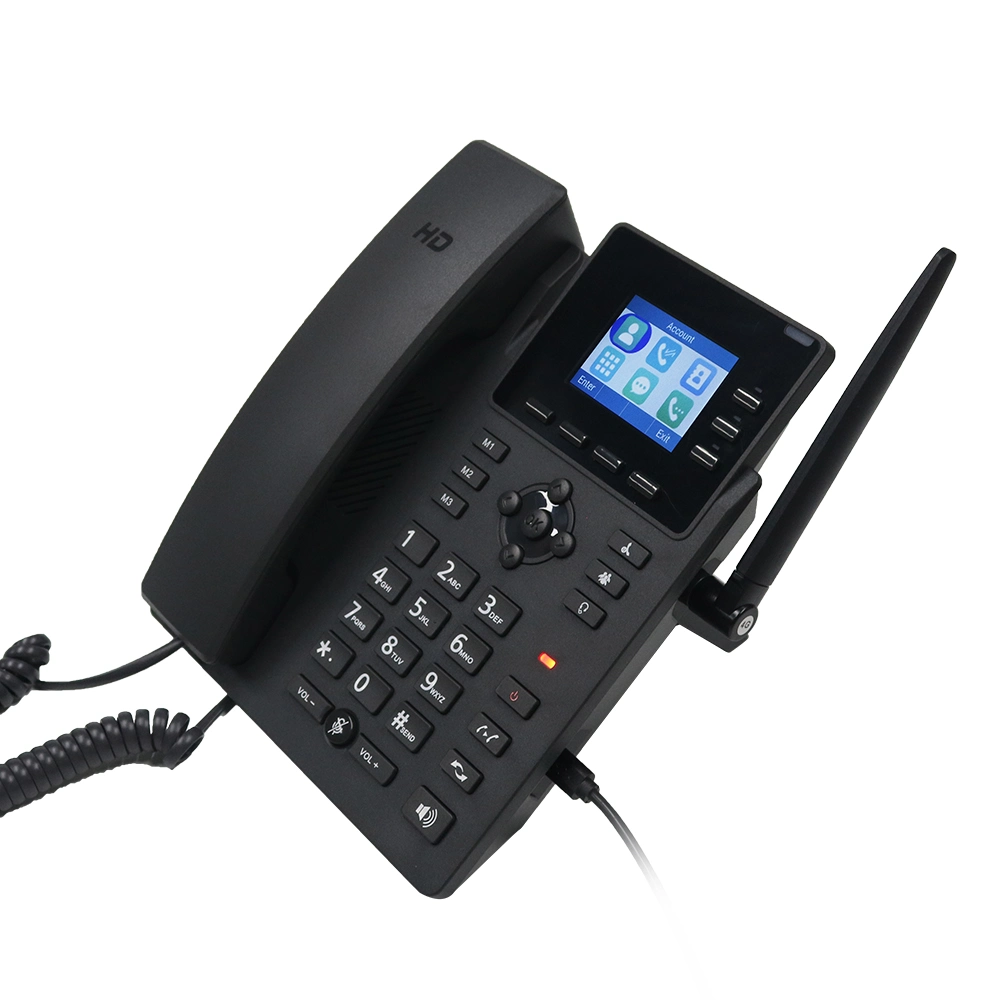

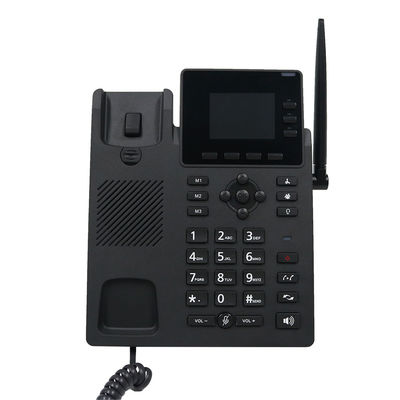

4G / WiFi Wireless Phone, SIP Network Phone Desktop Fixed Landline
JR401-GP fixed telephone is a multi-functional communication terminal, which is a VOIP terminal product with high practicality and manageability for voice communication on IP networks. It can be used in extensions and network IP telephone operating networks within the enterprise and has Internet access User. It can connect to the operator's 4G network, and the communication cost is extremely low with the support of the operator. It can also be used as a communication tool with high cost performance, high stability, and most in line with traditional usage habits in various private networks.
Technical specifications
4G / WiFi Wireless Phone, SIP Network Phone Desktop Fixed Landline
| Item | Specificatiom |
| LCD size | 2.4 |
| LCD Color | Color |
| Platform | Spreadtrum 9820e |
| Network | 4G All-Netcom(adjusted for different countries and regions) |
Frequency |
FDD-LTE: B1/B3/ B7/B20/B28A |
| TDD-LTE: B38/B39/B40/B41 | |
| WCDMA: B1/B2/B5/B8 | |
| GSM: B2/B3/B5/B8 | |
| WIFI | Support IEE802.11b/g/n |
| Bluttooth | Ble 4.0 |
| Battery | 1000mAh |
| Antenna | External TNC or Built-in Antenna |
| Power Supply | Micro usb 5V input |
Main Function |
WIFI Hotspot, VoLTE Voice, MP3 FM Radio, SMS, Make/receive call, |
| Hands free,speed dial,call forwarding,weather forecast etc | |
| Antenna interface | Integrated/TNC detachable antenna (optional) |
| Standby | Standby:120hrs talking time<5hrs |
| Power supply | DC 5V/1A |
| Battery | 3.7V/1000mAh |
| Accessory | Wire coil,handset,power adapter,back-up battery,user manual |
VOIP parameters of this device
This device is a standard SIP protocol, which is perfectly compatible with all PBX sip servers on the market
| SIP Protocol | SIP 2.0 (RFC3261) |
| Transmission protocol | UDP/TCP/TLS |
| DTMF | In-band, Out-of-band(RFC 2833) and SIP INFO |
| Audio coding |
G.722/G.729/AMR/AMRWB GSM/PCMA/PCMU/SPEEX/ILBC/DTMF/ISACWB/OPUS |
| Audio function | AEC/VAD/CNG/AGC/ANS |
| SRTP | NONE/FORCE/PREFER |
| 3GPP | TS 24.605 |
| Call transfer support | support |
| STUN | support |
| SIP line | 3 lines |
