| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR102-2B |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Weather Resistant: | IP67 |
|---|---|---|---|
| Color: | Yellow, Blue, Red, Orange (or Optional) | Version: | Analogue, SIP/VoIP, GSM/3G |
| Installation: | Wall/ Pillar Mounting | Warranty: | 2 Years |
| Net Weight: | 7 KG | Size: | 246 *339 *126 (mm) |
| Vandal Resistant: | Yes | ||
| Highlight: | IP67 Emergency Phone Box,Tunnels Industrial Weatherproof Telephone,Underground Station Industrial Weatherproof Telephone |
||

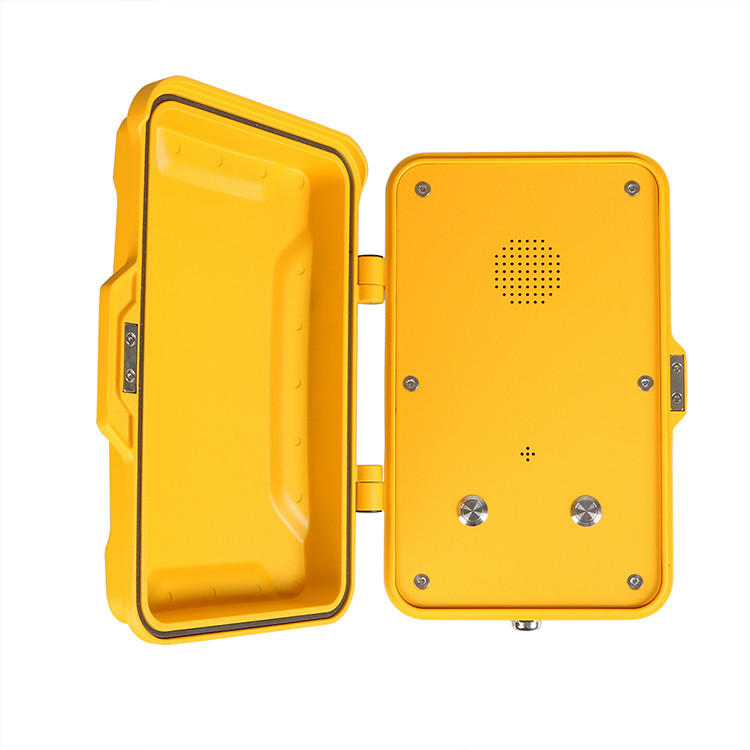

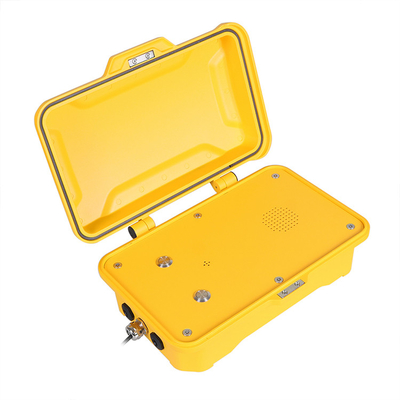

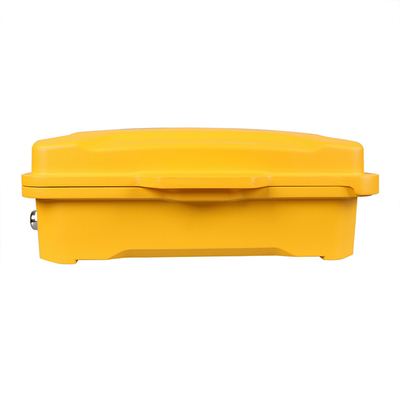

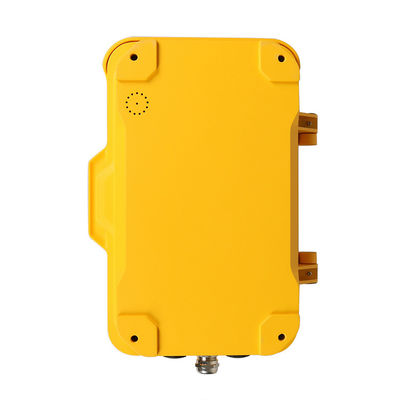

Water Resistant Handsfree Emergency Telephone for Industry, Rugged Tunnel Phone
This weatherproof telephone is idead for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc. which require very reliable telephony under adverse conditions.
This weatherproof telephone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Main Features:
- Standard Analogue phone, or SIP phone, or GSM/3G phone
- Aluminum alloy die-casting body
- Vandal resistant stainless steel button
- Weather proof protection to IP67
- Programmed for speed dial
- Wall/ Pillar mounting, simple installation
- Phone line powered (Analogue)
- External power supply or PoE (SIP/VoIP)
- RJ45 port for SIP phone
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Technical Parameters
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG
