| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR101-CB-3G-SP |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Color: | Red, Black |
|---|---|---|---|
| Warranty: | 2 Years | Weather Protection: | IP67 |
| Customized: | Yes | Vandal Resistant: | Yes |
| Unit Size: | 1510 X 270x 210 Mm | Weight: | 30 KG |
| Highlight: | 3G Roadside Emergency Phone,Roadside Emergency Phone Vandal resistant,IP67 Emergency Telephone Pillar |
||

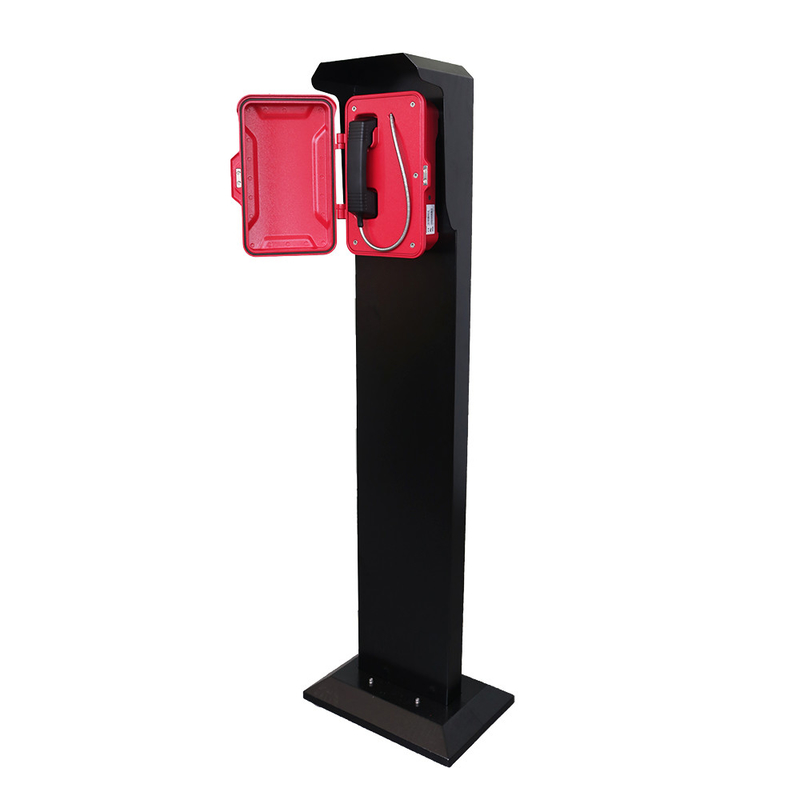

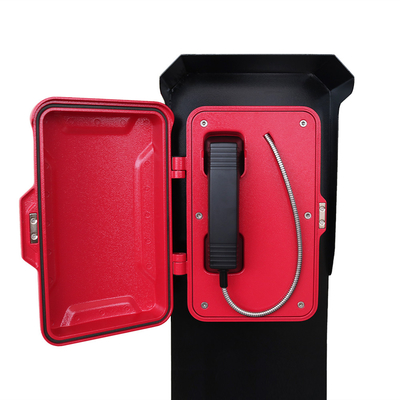

The J&R emergency roadside phone is designed for outdoor use. The phone shell is an aluminum alloy with a UV-resistant powder coating, which enhances the phone's resistance to vandalism and ensures that the phone's main communication functions remain in normal use at all times.
The telephone is an off-hook automatic dial phone, Users only need to pick up the handset, and the phone will automatically connect to the assistance center or related departments. It avoids the situation where the user does not know what number to dial in an emergency.
Additionally, the J&R telephone can be controlled and managed from a central location, thereby ensuring cost effective maintenance and improved up-time.
MAIN FEATURES
- There are 3 options for the connecting (Analogue, SIP, 3G / 4G)
- Programmable for speed-dialing (PPT)
- Weather protection IP67
- Can be programmed remotely
- Telephone line powered for analogue phone
- Additional power supply required for VoIP or GSM type
- The material of the tower is cold rolled steel with powder coated body
- Vandal-resistant structure and coating designed to resist extreme weather conditions
- A variety of signage, graphics and colors choices are available
- CE, FCC, RoHS, ISO9001 Compliant
TECHNICAL PARAMETERS
| 3G Version | |
| Power Supply | 12V DC |
| Power Consumption | -Idle: 0.3W -Active: 1.5W |
| Communication Type | Full duplex |
| Ringer volume | 90~95dB(A) at a distance of 1 m |
| Program Method | Remote programming by SMS |
| Frequency |
A version: - Dual-Band WCDMA/HSDPA 850/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz |
| Ambient conditions | |
| Protection type | IP 67 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
| Package | |
| Unit size: | 1510 *270 *210 (mm) |
| Packaging materials | Pearl cotton, Wooden Box |
| Weight: | 30 KG |
J&R Emergency Telephone Pillar are Installed Beside British Motorways
They are often used at university and college campuses, roadsides, streets, public squares, car parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities, and remote locations where local power is not available.
