| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR206-FK |
| Minimum Order Quantity: | 1 set |
| Price: | US$189~US$299 |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Color: | Bule, Or Optional |
|---|---|---|---|
| Warranty: | 2 Years | Weather Protection: | IP65 |
| Handset: | ABS Material With Armored Cord | Keypad: | Full Rugged & Durable Keypad |
| Voice Control Button: | Yes | Vandal Resistant: | Yes |
| Highlight: | Robuste Vandal Resistant Telephone,Cold Rolled Steel Vandal Resistant Telephone,IP65 ABS Vandal Proof Intercom |
||
Product Description

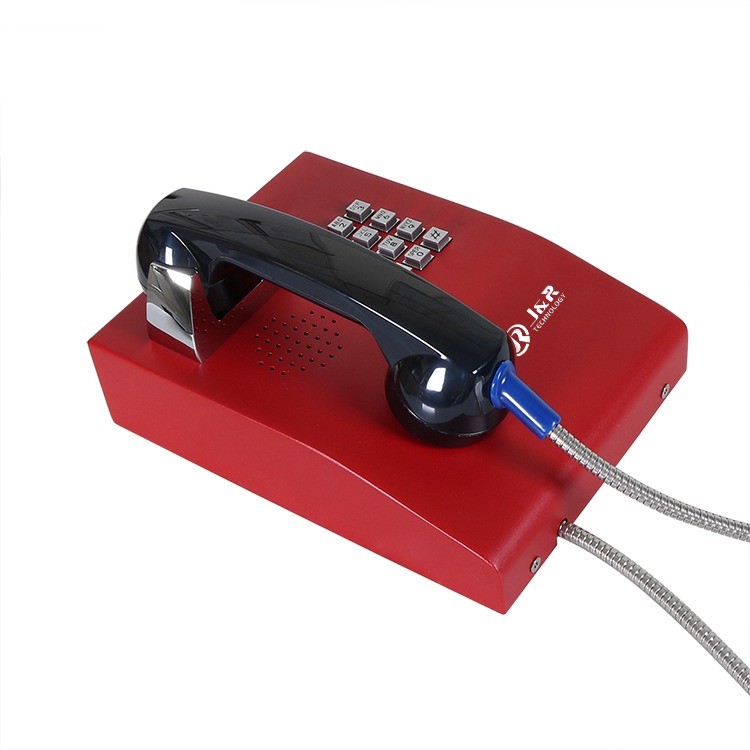

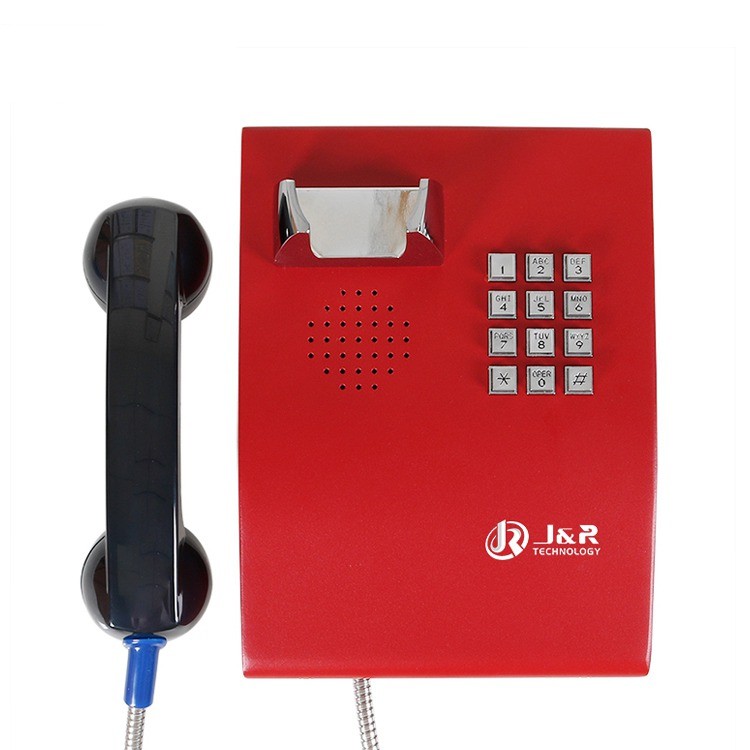

JR206-FK Multi-function Telephone
JR206-FK Robuste Telephone, Multi-function Telephone housed in cold rolled steel box so that the telephone has anti-vandal characteristics.
JR206-FK is equipped with industrial grade noise reduction handset and waterproof metal full keyboard.
The telephone supports wall mounting and desk mounting.
The color and function of the phone can be customized according to customer needs.
| Casing Material |
Cold rolled steel body |
| Colors | RED, YELLOW, GREY |
| Handset Material | ABS material handset with stainless steel spiral cord |
| Keypad |
Weather sealed tactile digital keypad. Chrome key and frame made of zinc alloy. Vandal resistance. |
| Temperature |
Operating: -30°C to +70°C Storing: -40°C to +75°C |
| Weather Resistance | IP65 |
| Ringing Tone | Shrill warble tone 80 dBA at 1 metre typical |
| Hook switch |
Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 4 kg depending on option |
Technical Specification
Robuste Telephone, Multi-function Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
Features
Robuste Telephone, Multi-function Telephone
Applications
Robuste Telephone, Multi-function Telephone
JR206-FK Robuste Telephone, Multi-function Telephone suitable for use in park, roadside, bank, ATM, campus, stadiums, jail, outside or outside building, etc.
Packing & Delivery
Robuste Telephone, Multi-function Telephone
| Unit Size | 248 *185 *129 (mm) |
| Carton Size | 230 *200 *150 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2.5 KG |
| Gross Weight | 3.5 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Our Services
Robuste Telephone, Multi-function Telephone
✬ ODM & OEM products or solutions
✬ Sample order is greatly welcomed
✬ We will reply your inquiry within 12 hours
✬ Update the productive process and show the packing details
✬ After delivered the goods, we will track the products for you once every two days, until you get the products.
✬ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
✬ J&R telephone is guaranteed for two years.
Our Company
Robuste Telephone, Multi-function Telephone
J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories.
(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
If you’re interested in our product, welcome to inquiry. To get more details about our telephone, please feel free to e-mail us. We will try our best to meet your needs.
FAQ
Robuste Telephone, Multi-function Telephone
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
