| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR101-FK-HB |
| Minimum Order Quantity: | 1 unit |
| Price: | Reconsideration |
| Packaging Details: | Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets per month |
| Product Name: | JR101-FK-HB Hot Sell Outdoor Weatherproof Heavy Duty Mining Telephone | Material: | Aluminum Alloy |
|---|---|---|---|
| Function: | SOS | Main Chip: | Audiocodec |
| Package: | Pearl Cotton, Carton | Modle: | Analog/ SIP/ GSM/ 3G |
| Mounting: | Wall /Pillar Mounted | Ingress Protection Rating: | IP66-IP67 |
| Full Keypad: | Yes | Door Cover: | Optional |
| Temperature: | -30°C To +65°C | OEM: | Yes |
| Warranty: | 2 Years | Feature1: | Anti Vandal |

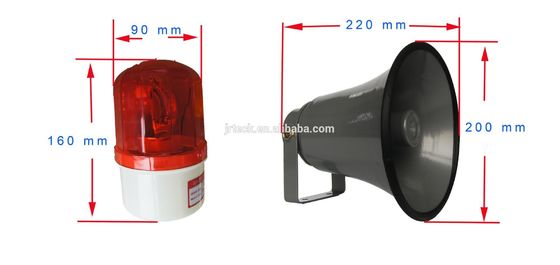

| Feature2: | Horn And Beacon | ||
| Highlight: | weatherproof telephone box,outdoor weatherproof telephones |
||
PRODUCT DESCROTION
FEATURE

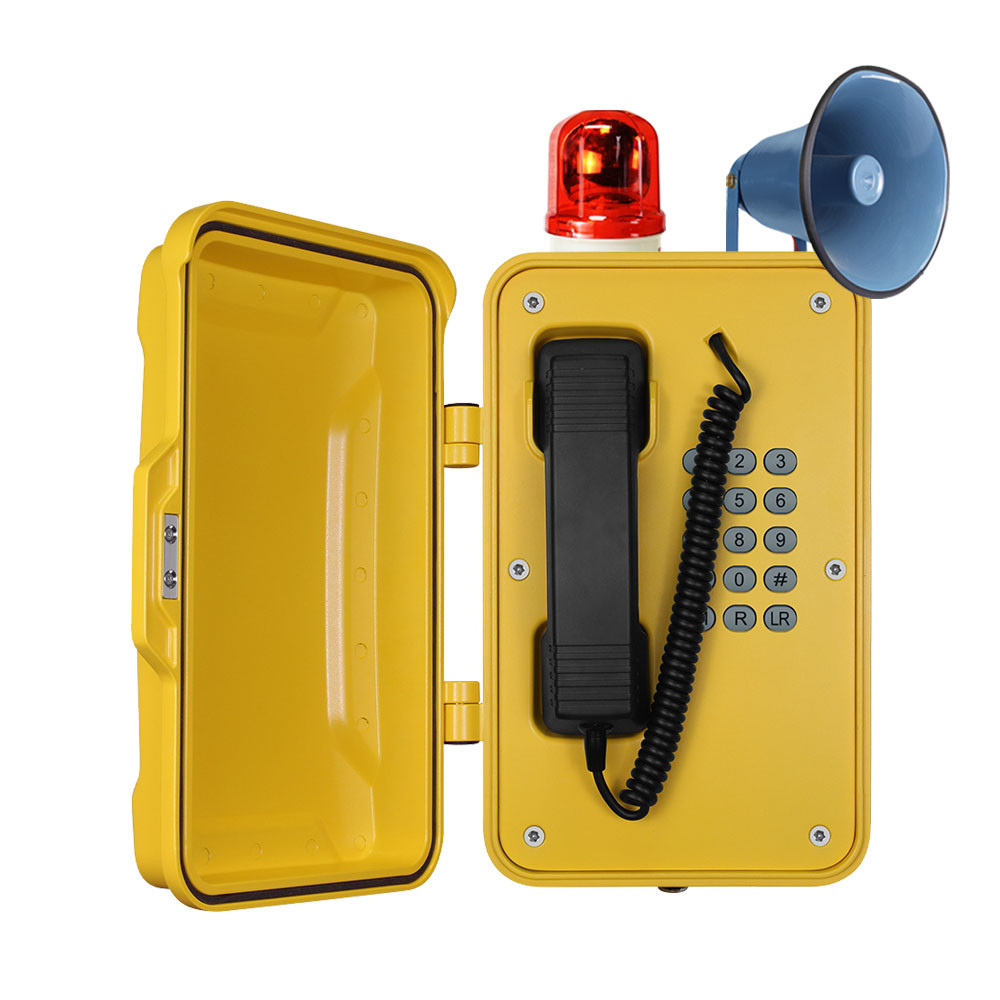

JR101-FK-HB hot sell Outdoor Weatherproof Heavy Duty Mining telephone
Standard Analogue phone
Vandal resistant handset and cord
Weather proof protection to IP67
Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
“LR” button for last number redial
“R” for flash recall
l “M” for muting
Wall mounting or Pole mounitng, Simple installation
Inductive coupler fitted as standard for hard of hearing
Phone line powered
CE,FCC,ROHS,ISO9001 compliant
Application
JR101-FK-HB hot sell Outdoor Weatherproof Heavy Duty Mining telephone
Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.
Technical Specification
JR101-FK-HB hot sell Outdoor Weatherproof Heavy Duty Mining telephone
| Analogue Version | ||
| Power Supply | From the analogue telephone network | |
| Supply Voltage | 24 VDC to 65 VDC | |
| Supply Current | 20 mA DC to 100 mA DC | |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
|
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. | |
| Ambient conditions | ||
| Protection type | IP 66 as per EN60529 | |
| Operating temperature | -40°C to +70°C | |
| Storage temperature | -40°C to +85°C | |
PACKAGE
Certificate
10 Reasons to Choose J&R
1. Where environmental factors pose a problem for conventional telephones
2. Where emergency communication points are needed
3. Where public information points are needed
4. When reliability and up-time are critical goals
5. When central management and control are important
6. Where maintenance access is difficult
7. When compatibility to existing systems is important
8. When voice sound quality is important
9. When future-proofing is needed
10. When ease of installation is important Service – Here when you Need us At J&R, we strive to deliver excellent service and customer support. We offer accreditation and installation training to our authorised partners, imparting best practice when it comes to installation and maintenance support. We also offer extended warranties and repair services on all our deliveries. We aim to respond to all product support requests within 24 hours.
