| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR505-SC |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Stainless Steel | Customized: | Support |
|---|---|---|---|
| Warranty: | 2 Years | Weather Protection: | IP55-IP65 |
| Handsfree: | Yes | Vandal Resistant: | Yes |
| Unit Size: | 135 *75 *25 (mm) | Weight: | 0.5 KG |
| Highlight: | outdoor sip phone,sip outdoor intercom |
||

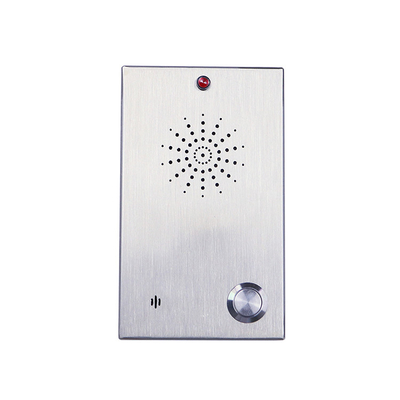

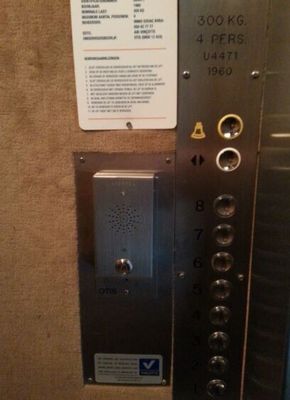

Rugged SIP Telephone for Elevator, Hands free Emergency VoIP Call Box
The Rugged Elevator Call Box is based on a stainless steel faceplate and provide a clear handsfree, loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.
APPLICATIONS
Ideal for schools, streets, public square, court houses, rail platforms, car-parks, police stations, hospitals, outside buildings, gate entry, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Standard VoIP/SIP Phone
- Robust housing, constructed of stainless steel
- Mini size, easy installation
- Vandal resistant metal button
- Hands free operation
- Programmable for speed-dialing (PPT)
- Can set a service number to receive service calls
- Non-volatile memory
- On wall mounting, simple installation
- Weather protection IP54-IP65
- 4 X Tamper proof screws for mounting
- Fast-fit terminal connection
- External Power supply or PoE (SIP phone)
- RJ45 port for SIP phone
- CE, FCC, RoHS, ISO9001 compliant
TECHNICAL PARAMETERS
Voice Features
- Support 2 lines SIP, SIP 2.0 (RFC3261)
- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726
- Echo cancellation: Support G.168 and hand-free can support 96ms
- Supports full duplex.
- SIP support SIP domain,SIP authentication(none, basic,MD5),DNS name of server, peer to peer
- SIP support 2 servers, user can through each server to calling in and out
Network Features
- WAN/LAN: support Bridge mode
- Support PPPoE for xDSL
- Support VLAN
- Support Stun penetration
- Support DHCP get IP on WAN port
| Ambient conditions | |
| Protection type | IP 55 as per EN60529 |
| Operating temperature | -20°C to +65°C |
| Storage temperature | -30°C to +75°C |
PACKAGE
Unit size: 135 *75 *25 (mm)
Carton size: 180*100*50 (mm)
Packaging materials: pearl cotton, carton
Net weight: 0.5 KG
Gross weight: 1 KG
